Description

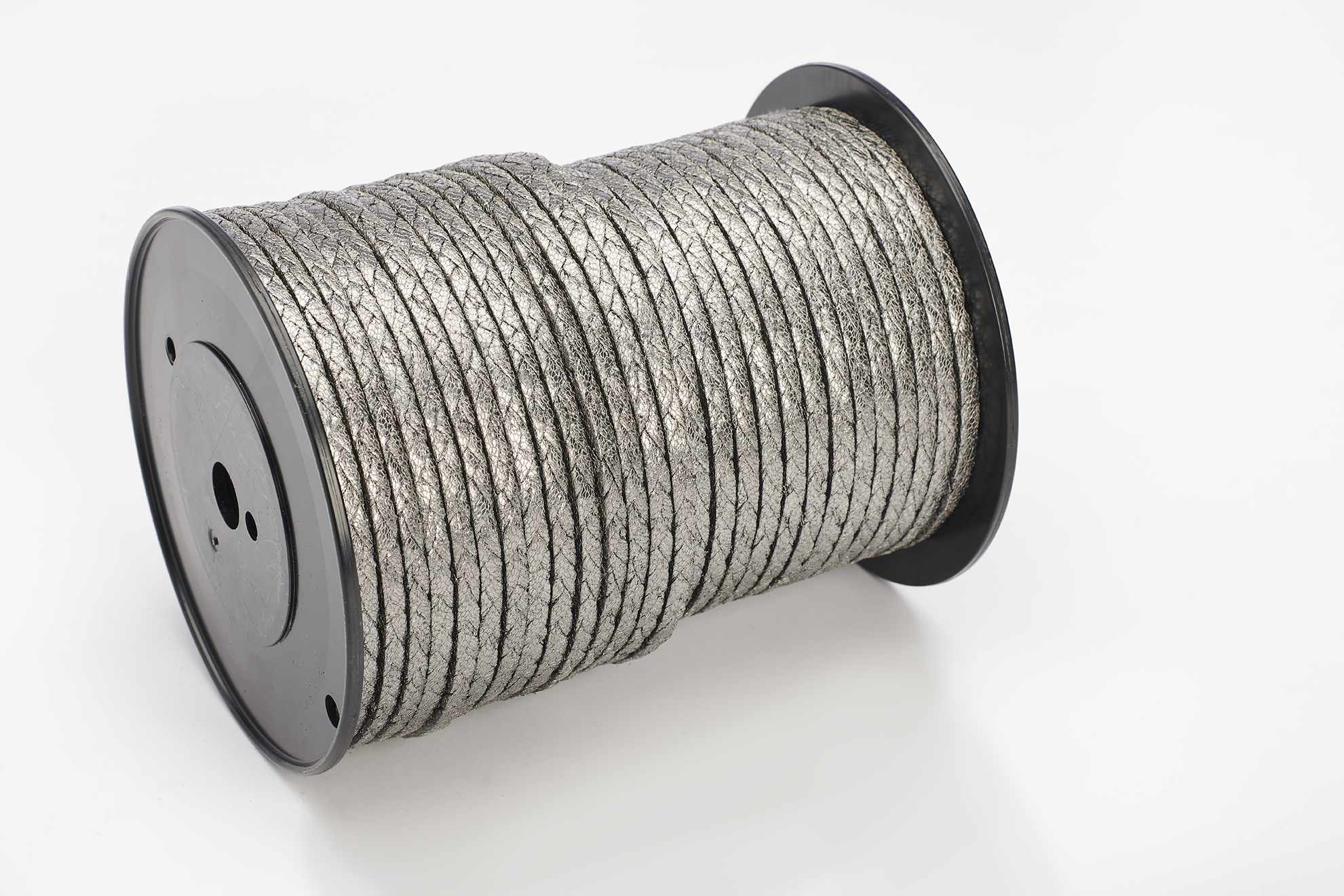

- Standard Material: Premium Flexible Graphite Braided Packing reinforced with Inconel wire knit without PTFE
- Applications: Rising and rotating valves in high temperature service where PTFE is not allowed to be used as a blocking agent
- Available Sizes: 1/8” to 1” (3 mm to 25 mm) Cross Sections – Larger sizes available upon request
- Pressure Limit: 5,000 PSI (345 bar) – Consult engineering for higher pressure applications
- Temp Limit: 1,200°F (649°C) steam, 875°F (468°C) oxidizing environment
- Chemical Resistance: pH (0-14), except strong oxidizers
Key Benefits
- Lowest Stem Friction for Inconel Reinforced Packing with no PTFE
- No PTFE blocking agents or Binders
- Great for Higher Pressure and Temperature Steam Service
- Perfect End Ring Material for Field Sets
